Xiaomi Mijia Xiaofang Dafang Smart IP Camera 110 Degree 1080p FHD Intelligent Security WIFI IP Cam Night Vision For Mi Home App

  • Sale
  • Regular price $41.98


NFC Support:No;VR Support:No;NightShot Function:Yes;WIFI Support:Yes;Built-in Memory Size:need installation SD card up to 32GB;Maximum Aperture:360 degrees x 93 degrees;Battery Capacity:NO;Memory Card Support:32G;Live Broadcast:Yes;Screen Size:360 degrees x 93 degrees;Memory Card Type:MicroSD / TF;HDMI Output:No;Waterproof:No;The Surround Sound Support:Yes;Remote Control Support:Yes;3D support:No;Touch Screen:No;Brand Name:Xiaomi;Model Number:xiaomi white smart camera;AV Output:No;Processor:NO;Weight:0.4kg;High Definition Support:1080P (Full-HD);Wideangle:360°*180°;Lens Amount:Single Lens;Effective MegaPixel:About 2MP;Package:Yes;Display Screen:No;Volume:12.75 x 6.60 x 6.00 cm;Bluetooth Support:Yes;Image Stabilization:No Image Stabilization;





NOTE:
1·The original packaging:US plug= One Xiaomi xiaobai Camera US plug

    (without TF card U disk )



2·video cameras, Instructions, is the Chinese version, Do not understand,
    please  contact me,Or please see the details below, the steps
3·this camera is connected to the power use, can only be connected to use    WIFI
4·Camera, in a relatively dark situation, will automatically switch to night
    mode
5·xiaomi camera will be the second test in our company,Ensure the quality,
   to  ensure that you can use the camera

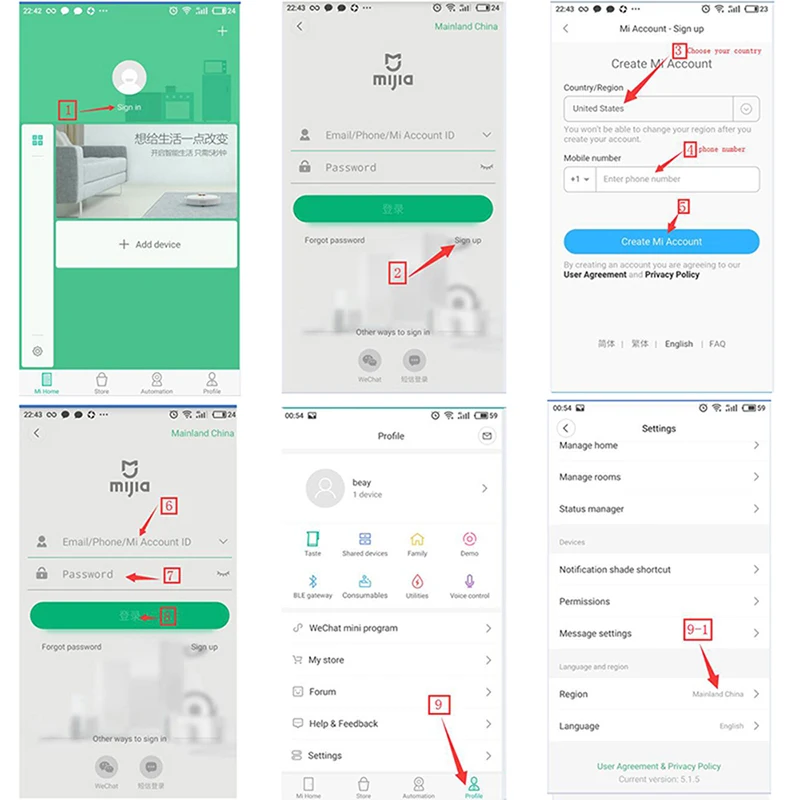

6·When adding cameras, please select Chinese server in mijia settings
7 ,Please do not update the firmware when you receive the device .
if you have any problems installing the camera, please contact me in time

Please click on the to view the video connection method

1 · Yellow light indicates the camera is already connected to the power supply

2 · Flashing yellow light means camera is waiting for connection

3 · Flashing blue light means the camera is connecting

4 blue light means the camera has been connected successfully

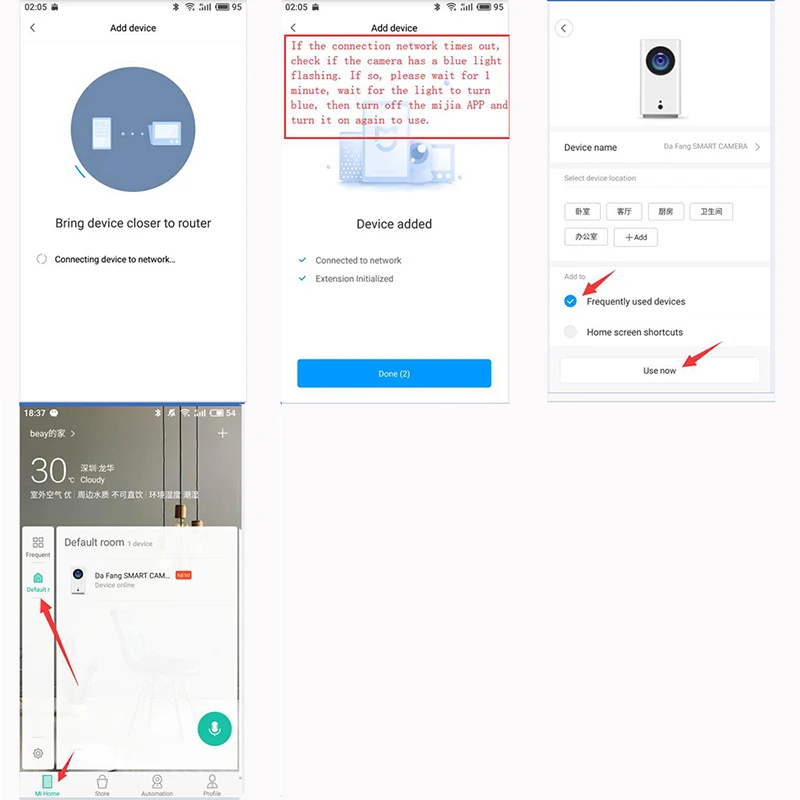

5·If the camera has a connection timeout and the blue light of the camera is flashing, please wait 35 seconds without clicking on the phone. When the camera light shows blue directly, the camera has been connected successfully, please click on the phone to try again

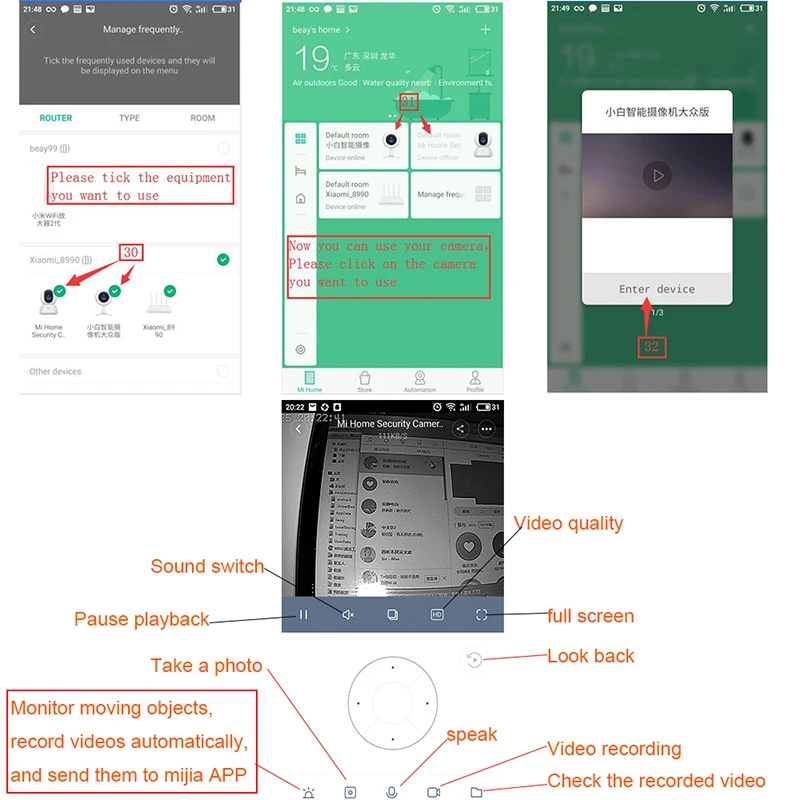

Built-in microphone and speaker, support two-way remote dialogue
You can get to know the situation where you want to know by phone or tablet at anytime or anywhere
Observe the photograph and video whenever necessary

120-degree wide-angle lens brings a sense of immersive screen
Playback at anytime, in addition to real-time viewing, it can insert a SD memory card to store video for look at any time
Max to support 32G extended TF card ( not included )

1080P full high definition resolution provides a clear image
Please download APP "Mi Home" from for Apple Store or Google Play
Support Android 4.0 and above, iOS 7.0 and above system devices

Technical Feature Infrared
IP camera performance Interphone
Night Vision
Remote Control
Motion Detection Distance 9M
Interface Micro USB
Video Image Audio
Video Resolution 1080P HD
Frame Rate (FPS) 15FPS
Resolution 1920 × 1080
Night Vision 6 Infrared LED
960 nm   0.5W
System and Hardware Info
Local-storage SD card up to 32GB
Maximum Monitoring Range 9M
FOV 120 Degrees
Working Voltage 5V 2A
Connect WIFI 802.11b/g/n 2.4GHz

20171106_160848_023 20171106_160848_024 20171106_160848_025 20171106_160848_026 20171106_160848_027 20171106_160848_028 20171106_160848_029 20171106_160848_030 20171106_160848_031 20171106_160848_032 0 1 2 3 4


Device binding timeout how to do?

Please visit the router to check Wi-Fi settings:

xiaomi router address:192.168.31.1

Other router address:192.168.2.1

                  192.168.1.1

                  192.168.0.1

1, if you are buying a millet router: enter 192.168.31.1 in the browser; other routes, please enter: 192.168.1.1 or 192.168.0.1 or 192.168.1.0;

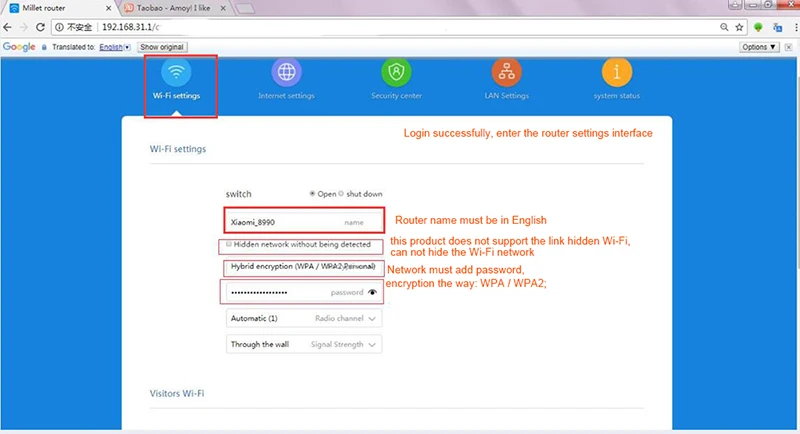

2, after landing account, click "Common Settings" - "Wi-Fi Settings"

3, Login successfully, enter the router settings interface

4, confirm the dual-band router off one (2.4G and 5G features), this product only supports 2.4G network

5, Router name must be in English

6, this product does not support the link hidden Wi-Fi, can not hide the Wi-Fi network;

7, Network must add password, encryption the way: WPA / WPA2;

8, Routing name and password is too long, there may be binding timeout, it is recommended to shorten the password and router name try to connect

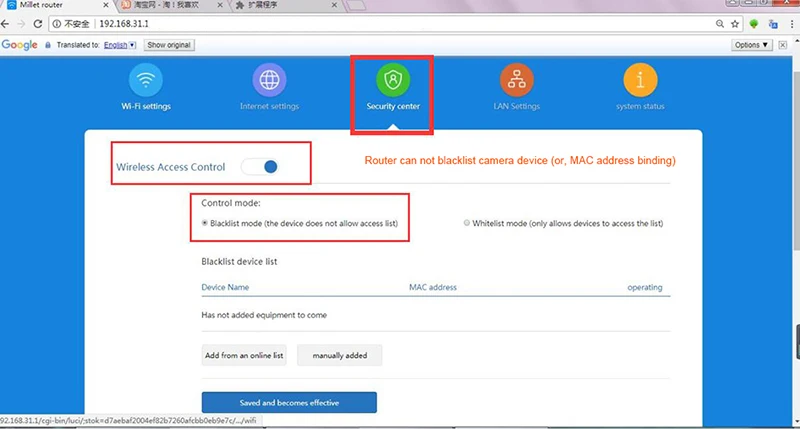

9, Router can not blacklist camera device (or, MAC address binding)

10, can not xiaomi router intrusion defense switch, open to the highest level;

11, the market part of the optical cat box with routing function, the network port is also blocked will result in binding failure, it is recommended that users use the route binding;

12, some portable WIFI on the market (360 portable WIFI) may not support device binding, it is recommended that users use routing binding;

13 If the names of the routing relay names and the main routes are the same, the connection may not be connected because the device switches the network when the two routes have different signal strengths during the connection.

14, When connecting the camera, please restart the router, connect the camera near the router, the wifi signal will be unstable over long distance, the camera can not be connected

15,Use the camera, the effective distance of the WIFI signal, (general router, open area of 10 meters, the room router walls and other obstructions will block the WiFi signal, resulting in shorter wifi signal distance, resulting in video and picture is not clear, or interrupt connection )

16,Can not open WI-FI dual-band one (2.4G and 5G will use the same name after opening, the router will automatically select the best wifi network, the short-range signal, switch to 5G network, Remotely signal, switch to 2.4G network , Due to differences in terminal equipment, automatically switch the signal, resulting in network disruption, or have been connected to the camera, video and image, is not clear, the camera connection signal is bad, and other issues)

17, Other ways to set the router much the same, do not understand can ask router service providers
